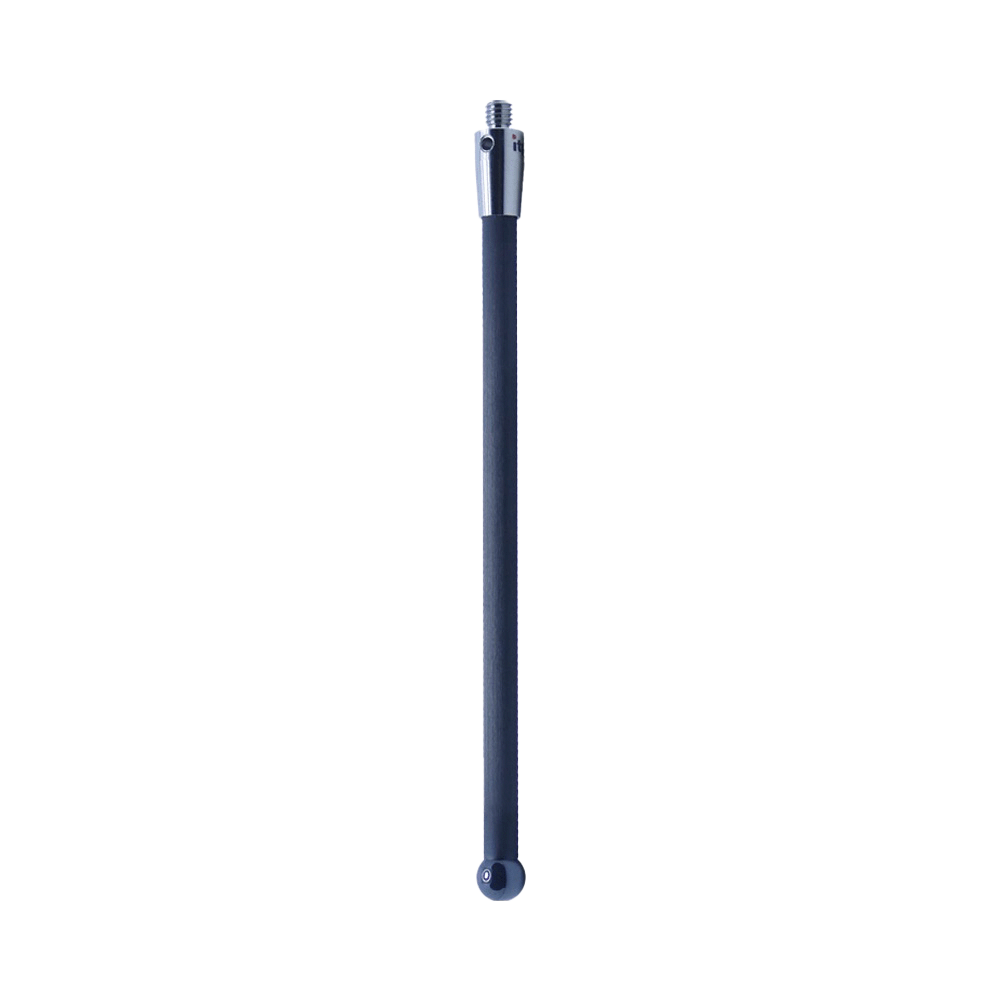

M3 XXT Straight Scanning Stylus
Silicon Nitride Ball , Carbon Fiber Stem , Titanium Base
5.0 mm Ball; 66.0 mm Measuring Length; 75.0 mm Total Length
M3 XXT Straight Scanning Stylus
Silicon Nitride Ball , Carbon Fiber Stem , Titanium Base
| Order-No.: | TC M3 S50 05 075/K |
|---|---|
| Price: | $163.00 |

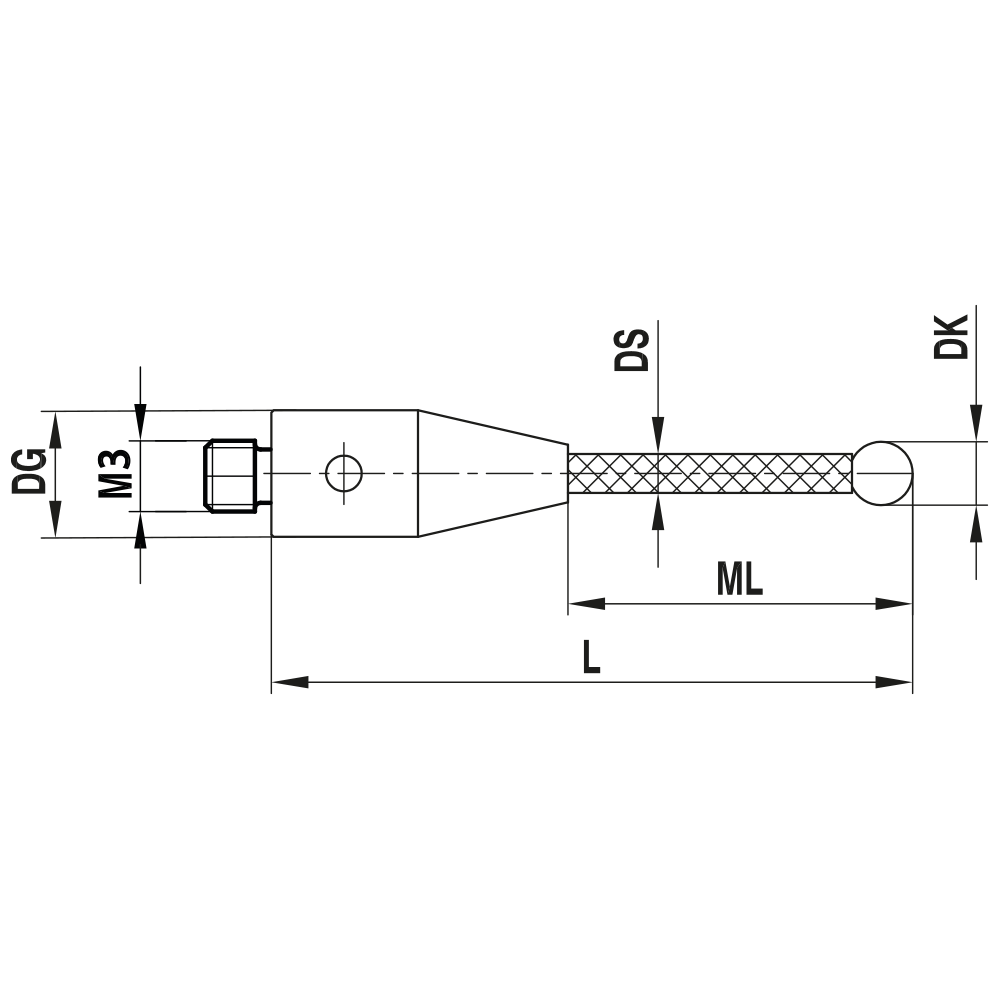

| Thread Size: | M3 Xxt |
| DK: | 5.0 mm |
| L: | 75.0 mm |
| DG: | 5.0 mm |
| ML: | 66.0 mm |
| DS: | 3.5 mm |
| Thread size: | M3 Xxt |
| Probe Ball Material: | Silicon Nitride |
| Stem Material: | Carbon Fiber |
| Base Material: | Titanium |
| Weight: | 1.8 g |
| Designation "/K" in part# indicates sphere is cup mounted and glued to the stem. | |
| 5.0 mm Ball; 66.0 mm Measuring Length; 75.0 mm Total Length | |
